เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ

|
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | Y800-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motors For Blast Blower | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 3KV, 6KV, 10KV | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling method: | IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| เน้น: | Blast Blower ac asynchronous motor,ac asynchronous motor 10KV 50HZ,hv electric motor 10KV 50HZ |
||

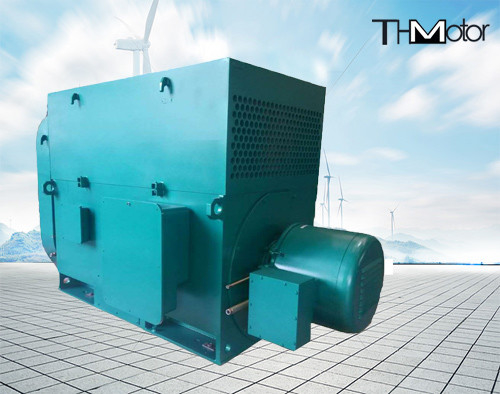

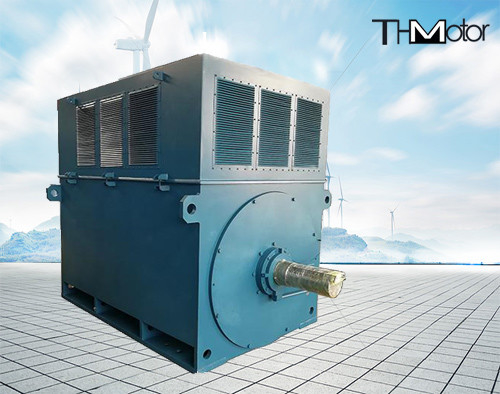

YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motors For Blast Blower
Product overview
YK series high-speed high-voltage motors are large three-phase asynchronous motors. The working environment temperature is 0C~40℃, and the altitude does not exceed 90%. The insulation grade of the motor winding is F grade. Reliable performance in a variety of conditions. The windings are soaked in VPI vacuum and have a long service life. The allowable temperature rise of the motor is 80K.
The motor has two shaft extension ends, and either end can be used to drive the supporting machinery. An absolute current is generated between the bearing at one end of the motor and the base plate.
The enclosure protection grades of this series of motors are IP23, IP44, IP54, IP55, etc. The cooling methods include IC01, IC611 and IC81W, etc., and the installation method is IMB3. Corresponding protection types, cooling methods and installation methods can also be made according to user requirements.
This series of motors can also be made into wet tropical type, dry tropical type, outdoor type, outdoor anti-corrosion type and outdoor wet tropical type.
This series of motors can be used to drive various general machinery, such as compressors, water pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment.
Product specifications
| frame(center high) | 500/630/710/800 | IP level | IP54/IP44/IP55 |
| Rated Power | 220kw - 2500KW,3500KW | Cooling Method) | IC611 |
| Voltage | 3KV, 6KV, 10KV | Poles | 2,4,6,8,10,12 |
| Frequency | 50HZ/60HZ | Insulation class | F |
| Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
| P.F.power factor | 0.84-0.85 | AT(Ambient Temp) | -15-40℃ |
Each series of motors
Our aftersales service
Product packaging
Certifications
ผู้ติดต่อ: Chongqing sales team
โทร: +8613251285880
