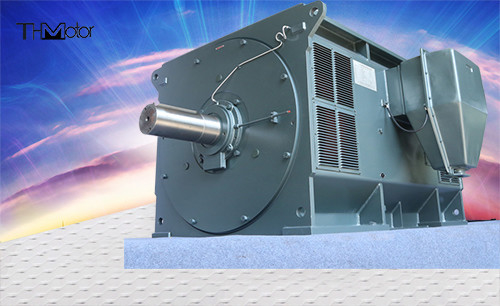

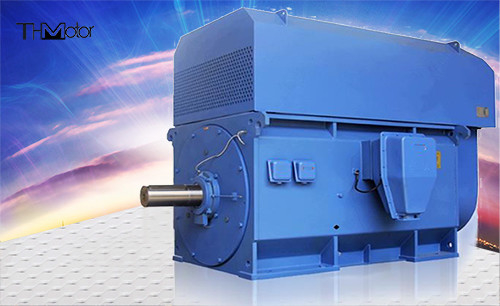

Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency

Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: YKK-500/1250KW
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: Y Series High Voltage Electric Motor High Voltage AC Motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz, 60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
เน้น:

10KV high voltage electric motor

,

high voltage electric motor 94.5%

,

Y Series 10KV squirrel cage motor

Y Series High Voltage Electric Motor High Voltage AC Motor



Product overview



Y series high-voltage motor adopts box-type structure, and the frame is welded by steel plate, which is light in weight and good in rigidity. Y series high-voltage motors are naturally ventilated and cooled, and a protective top cover is installed on the upper part of the base, which is convenient for disassembly and assembly, and facilitates the maintenance of the motor.



The stator winding is made of F-class heat-resistant insulating material, with reliable top binding, and the Y series high-voltage motor has good insulation performance and mechanical strength through vacuum pressure dipping.



The rotor of the Y series high-voltage motor adopts a squirrel-cage structure with reliable cast aluminum or copper conductors. There are two types of bearings: rolling bearings and sliding bearings, which depend on the speed and power of the motor.



Product specifications



Motor frame 500/630/710/800 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
Power Factor 0.84-0.85 AT(Ambient Temp) -15-40



Each series of motors

Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency 0



Our aftersales service

Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency 1



Product packaging

Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency 2



Certifications

Y Series 10KV 6000kw Squirrel Cage High Voltage Electric Motor 94.5% Efficiency 3
