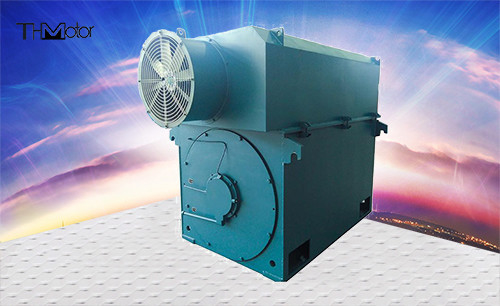

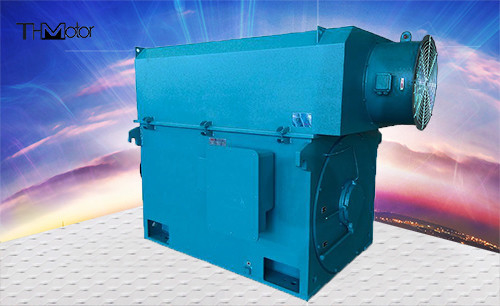

400kw to 6000kw YXKK 560 Kw High Pressure 3 Phase Squirrel Cage Motor 596r/Min

400kw to 6000kw YXKK 560 Kw High Pressure 3 Phase Squirrel Cage Motor 596r/Min

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: YXKK450-4 560kw
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: YXKK 560kw High Voltage AC Motor squirrel cage motor high-efficienchy motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP54/IP44 Poles: 2,4,6,8,12,16
instalation: IMB3
เน้น:

YXKK 560 kw 3 phase squirrel cage motor

,

3 phase squirrel cage motor 596r/min

,

YKK 560 kw high pressure motor

YXKK450-4 560kw High Voltage AC Motor squirrel cage motor high-efficienchy motor





Product overview


The stator adopts an external press-fit structure, the stator winding adopts F-class insulating material, and the ends are reliably fixed and bound. During the manufacturing process, it has undergone several inter-turn pulse voltage tests and ground withstand voltage tests, and adopts foreign advanced vacuum pressure. Immersion solvent-free paint equipment and process (VPI) treatment. Therefore, the motor has excellent and reliable insulation performance, good mechanical strength, and strong moisture resistance.


The squirrel cage rotor adopts two structures of cast aluminum and copper bars, which are manufactured by advanced and reliable cast aluminum process or welding process, and are verified by dynamic balance to ensure the smooth and reliable operation of the motor.


There are two types of bearings: rolling bearing and sliding bearing, depending on the power and speed of the motor. The rated power of the motor is 50HZ, the rated voltage is 10000V, and the basic type of protection grade is IP44. After negotiation, the housing protection grade of the collector ring can be IP22 or IP23, motors of other voltages, frequencies and protection classes can also be provided upon order request.


Electric motors can be used to drive various machinery, such as compressors, water pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment. They are used in mining, machinery industry, petrochemical industry, power plants and other industrial and mining enterprises Motive use. Motors used to drive blowers, coal mills, rolling mills, and hoists should indicate the purpose and technical requirements when ordering, and adopt special designs to ensure reliable operation.​



Product specifications



power 1250KW speed 596r/min
voltage 6000V effi 95.2%
Current 148.6A IP Rate IP54/IP44
Frequency 50HZ cooling method air-air
instalation  IMB3 torque 1.8



Each series of motors

400kw to 6000kw YXKK 560 Kw High Pressure 3 Phase Squirrel Cage Motor 596r/Min 0



Our aftersales service

400kw to 6000kw YXKK 560 Kw High Pressure 3 Phase Squirrel Cage Motor 596r/Min 1



Product packaging

400kw to 6000kw YXKK 560 Kw High Pressure 3 Phase Squirrel Cage Motor 596r/Min 2



Certifications

400kw to 6000kw YXKK 560 Kw High Pressure 3 Phase Squirrel Cage Motor 596r/Min 3
