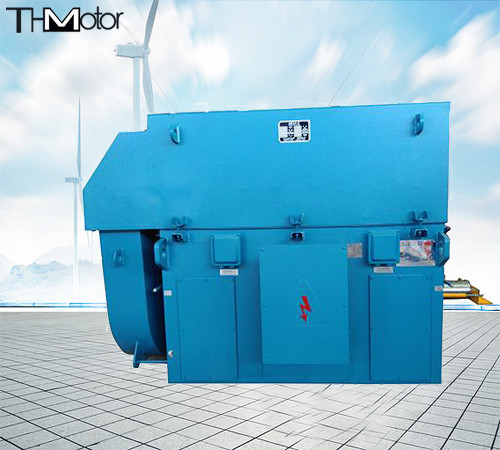

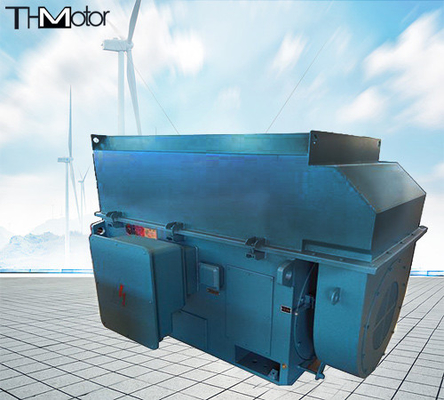

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: YXKS5601-4
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: YX series High Voltage AC Motor three phase ac induction motor for pump Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 500/590/740/990/1500/3000RPM
Frequency: 50hz, 60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54, IP55 Poles: 2,4,6,8,12,16
เน้น:

11000v High Voltage AC Motor

,

3 phase induction motor IP55

,

3 phase induction motor IP54

YX series High Voltage AC Motor three phase ac induction motor for pump



Product overview



YXKK series high-voltage three-phase asynchronous motor (frame size 355-1000) has reasonable structure and advanced technology. It has the advantages of high efficiency, energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance, etc. On the basis of YKK, energy-saving materials are further adopted , Change the electromagnetic design scheme to further improve the motor efficiency, reaching more than 94%.


The power level, installation size and electrical performance of the motor are in line with the national standard GB755-2000 <Rating and performance of rotating electrical machines> and related IEC standards and national industry standards JB/T10314.2-2002..


The basic installation method of the motor is horizontal with bottom angle (IMB3), and the working system is continuous working system (S1).
The motor adopts box-type structure. The frame is welded with steel plate, which is light in weight and good in rigidity. The closed air/air cooler is installed on the top of the motor, which is convenient for disassembly and assembly, which is conducive to the maintenance and repair of the motor. The slip ring cover is available for observation Observation window for operation.


The stator adopts an external press-fit structure, the stator winding adopts F-class insulating material, and the ends are reliably fixed and bound. During the manufacturing process, it has undergone several inter-turn pulse voltage tests and ground withstand voltage tests, and adopts foreign advanced vacuum pressure. Immersion solvent-free paint equipment and process (VPI) treatment. Therefore, the motor has excellent and reliable insulation performance, good mechanical strength, and strong moisture resistance.



Product specifications

Motor frame 500/630/710/800 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
Power Factor 0.84-0.85 AT(Ambient Temp) -15-40℃



Each series of motors

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55 0



Our aftersales service

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55 1



Product packaging

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55 2



Certifications

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55 3
