เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ

|
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | YXKS7101-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Y800 Series 10kv 6kv High Voltage Ac Motor Induction Motor For Steel Plant | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling method: | IC01、IC411、IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| เน้น: | 10kv three phase asynchronous motor IC611,6kv three phase asynchronous motor IC411,induction asynchronous motor IC01 |
||

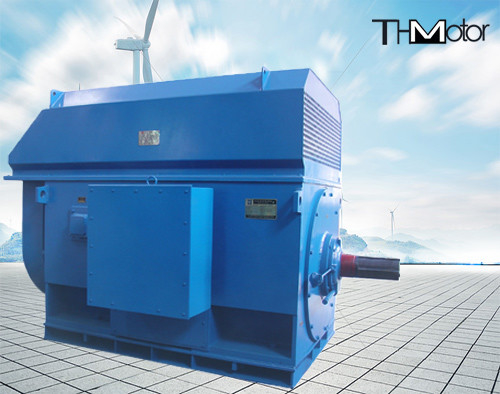

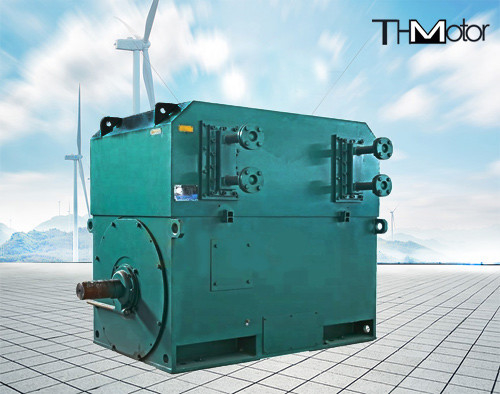

Y800 Series 10kv 6kv High Voltage Ac Motor Induction Motor For Steel Plant
Product overview
Motor Y series high-voltage high-efficiency three-phase asynchronous motor is a medium-sized high-voltage high-efficiency motor. The motor has good heat dissipation, compact structure, light weight, good stiffness, high efficiency and convenient installation
This series of motors are suitable for driving various machines without special requirements, such as machine tools, compressors, water pumps, ventilators, conveyor belts, crushers, etc., and can be used as prime mover in machinery industry, petroleum industry, power generation industry and various industrial and mining enterprises The motor is welded with all steel plates, with reasonable structure, good heat dissipation performance with louvers, and VPI vacuum pressure impregnation paint, superior insulation performance and long service life This series of motors can be used to replace the original J and JS series motors. Under the condition of the same motor power, the production of small machine seat number can be realized. At the same time, this series of motors is widely used and has strong universality. It can derive various types of motors. It is a standard motor purchased by various industrial and mining enterprises at present.
Product specifications
| PRODUCT NAME: | Y800 Series 10kv 6kv High Voltage Ac Motor Induction Motor For Steel Plant | POWER RANGE: | 400-6000kw |
|---|---|---|---|
| VOLTAGE: | 6000v-11000v | SPEED RANGE: | 100rpm-3600rpm |
| FREQUENCY: | 50hz,60hz | COOLING METHOD: | IC01,IC411,IC611 |
| IP RATE: | IP23, IP54,IP55 | POLES: | 2,4,6,8,12,16 |
Each series of motors
Our aftersales service
Product packaging
Certifications
