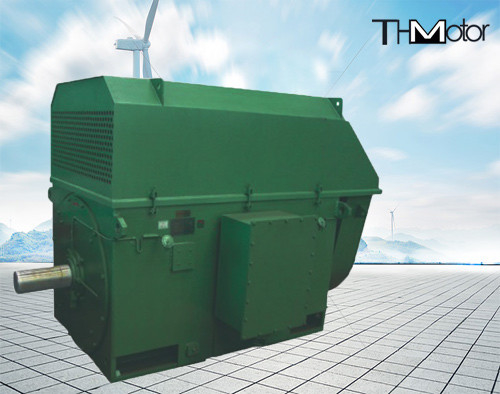

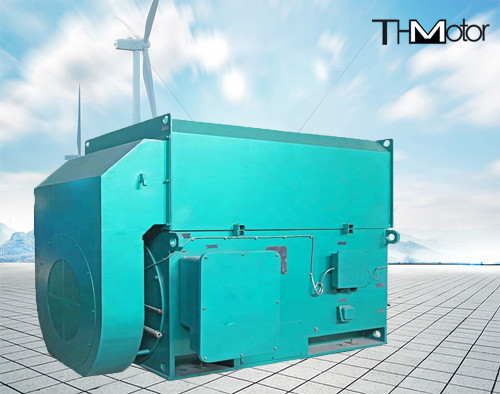

YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35

YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35

  • YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35
  • YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35
YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: YXKS7101-4
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: Ykk560 YKK 630 Medium Size H355-630 High Voltage Electric Motors Slip Ring Motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz / 60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
Installation: IMB3
เน้น:

YKK560 High Voltage Electric Motors

,

Slip Ring Motor IMB3 IMB35

,

YKK630 Slip Ring Motor

Ykk560 YKK 630 Medium Size H355-630 High Voltage Electric Motors Slip Ring Motor



Product Overview



This motor can be processed by the anticorrosion anti-mould-proof process to derive outdoor (W) and outdoor corrosion protection (WF) motors.

High efficiency, energy saving.Low vibration.Reliable performance and easy installation and maintenance.

The frame is made of steel plate being welded up into form of square tank shape with light weight and firm rigidity.

Stator is an outer-press-assembly structure.

The stator winding is F grade insulation at the winding’s end part being firm banded.

The whole stator has been treated with VPI technology to make stator with a robust body and good electric and moisture proof.

The rotor can be developed into casting aluminum rotor or copper bar rotor.

The copper cage rotor guide bar and end ring are welded by intermediate frequency, and the copper guide bar diameter groove is treated with solid technology to make it have high reliability.


1. Applicable places: indoor or outdoor, non-hazardous gas environment;
2. Ambient temperature: -15~+40℃;
3. Altitude: no more than 1000m;
4. Installation method: IMB3, IMB35
5. Protection grade: IP44, IP54, IP55;
6. Insulation class: F, H.

Standard form of YKK high voltage motor
Voltage: 6000V, 50Hz
Protection class: YKK series is IP44 or IP54
Insulation class: F
Working system: S1 (continuous)



Cooling method: YKK series is IC611
Installation form: IMB3
Motor connection method: Y (three outgoing terminals in the junction box, the junction box viewed from the extension end of the main shaft is located on the right side of the machine base)
Use environment
Altitude: no more than 1000m
Ambient air temperature: no more than 40 ℃ and no serious dust, the minimum ambient air temperature is -15 ℃ for YKK high-voltage motors with rolling bearings, and 5 ℃ for motors with sliding bearings.



Product specifications



frame(center high) 500/630/710/800 IP level IP54/IP44/IP55
Rated Power  220kw - 2500KW,3500KW Cooling Method) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
Installation IMB3 Connection  star



Each series of motors

YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35 0



Our aftersales service

YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35 1

Product packaging

YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35 2



Certifications

YKK560 YKK630 Slip Ring High Voltage Electric Motors IMB3 IMB35 3
