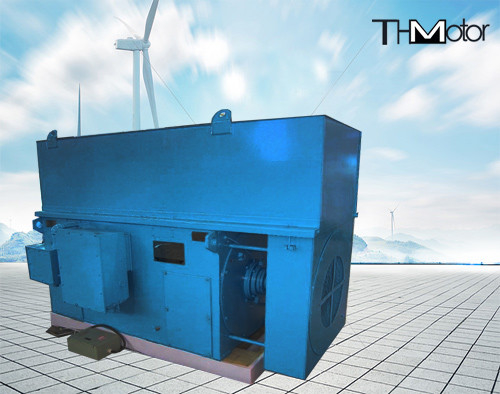

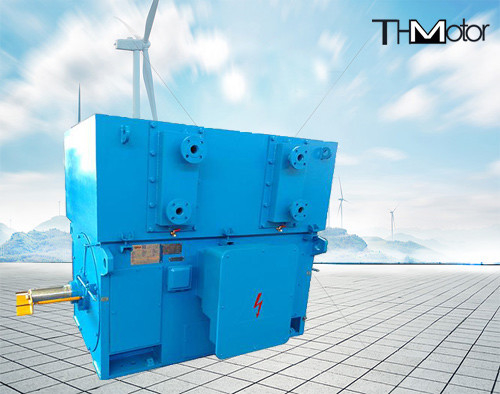

IC611 3 Phase Squirrel Cage Asynchronous Motor IP54 IP55

IC611 3 Phase Squirrel Cage Asynchronous Motor IP54 IP55

  • IC611 3 Phase Squirrel Cage Asynchronous Motor IP54 IP55
  • IC611 3 Phase Squirrel Cage Asynchronous Motor IP54 IP55
IC611 3 Phase Squirrel Cage Asynchronous Motor IP54 IP55
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: Y800-4
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: Y710 Squirrel Cage High Voltage Electric Motors Rolling Bearing Ip54 Ip55 Ic611 Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
เน้น:

IC611 3 phase asynchronous motor

,

3 phase asynchronous motor IP54 IP55

,

squirrel cage asynchronous motor IP54 IP55

Y710 Squirrel Cage High Voltage Electric Motors Rolling Bearing Ip54 Ip55 Ic611





Y and YR are the basic series, the protection grade is IP23, and the cooling method is IC01. On this basis, various motors with different protection grades and cooling methods can be derived, such as YKS (air-water cooling), YQF (climate protection), YKK (air-air cooling), YRKS, YRQF, YRKK and other series motors.

The rotor of the asynchronous motor adopts advanced computing technology to calculate the starting temperature rise and stress of the squirrel-cage rotor, so as to prevent the motor from early damage due to excessive starting load. Users are advised to check:
(1) The moment of inertia of the rotating part of the driven mechanical equipment (converted to the motor speed) should not exceed the value in the item (load J) in the technical data sheet;
(2) The user's power grid should ensure that the motor terminal voltage of the motor during the starting process is not lower than 85% of the rated voltage;
(3) The resistance torque characteristics of the driven machinery are the resistance torque characteristics of pumps and fans.
Under the above conditions, the motor is allowed to start twice continuously in the actual cold state, and the motor stops naturally between the two starts; or starts once in the hot state of the motor. Restarting the motor beyond the above limit should be done after stopping for 1 hour.
If the moment of inertia of the mechanical rotating part of the motor drive is required to exceed the (load J) value in the technical data sheet, or the motor is required to be started frequently, or the motor may be started with a heavy load, be sure to contact our company in advance to negotiate, so that special Designed to ensure reliable starting of the motor.

YKK高压电机安装尺寸

frame  installation dimension outer dimension
A B C D E F G T H K AD HD L
710 1400 1800 530 200 350 45 185 25 710 56 1270 1510 3200
800 1600 2000 220 50 203 28 800 1420 1700 3200
900 1800 2240 600 250 410 56 230 32 900 66 1650 1900 3800
1000 2000 2500 280 470 63 260 32 1000 1800 2100 3800
