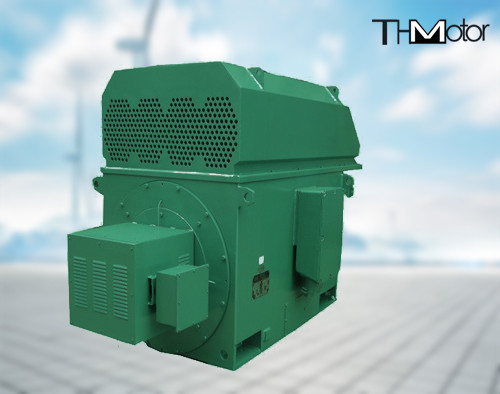

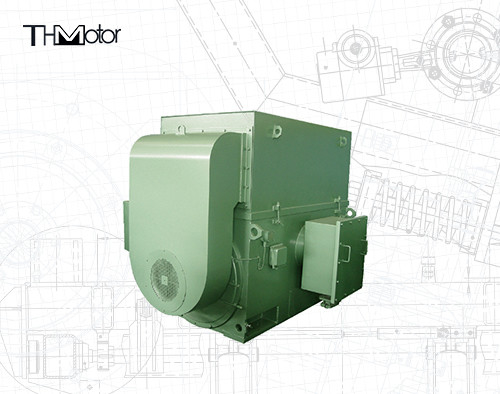

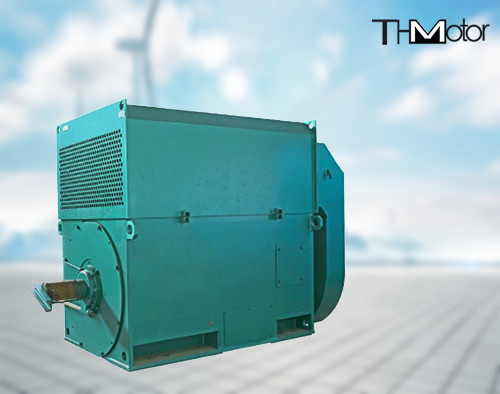

11000v Variable Speed Three Phase Asynchronous Motor IP55

11000v Variable Speed Three Phase Asynchronous Motor IP55

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: Y800-4
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: Variable Frequency Motor Three Phase Asynchronous Motor Variable Speed Motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
เน้น:

11000v Variable Speed Motor

,

Variable Speed Motor IP55

,

Three Phase Asynchronous Motor IP55

Variable Frequency Motor Three Phase Asynchronous Motor Variable Speed Motor



Product Description:



In order to meet the market demand, our company has independently developed a three-phase asynchronous motor with low voltage and high power for rolling steel with variable frequency and speed regulation.
YPKS low-voltage high-power rolling steel variable frequency speed regulation asynchronous motor

In order to meet the market demand, our company has independently developed a three-phase asynchronous motor with variable frequency and speed regulation for low-voltage and high-power steel rolling. This series of motors has no slip rings and carbon brushes, and has strong adaptability to the environment. Adopting today's leading technology for design and manufacture, the appearance is compact and beautiful, easy to install and debug, easy to maintain, and safe and reliable to operate.
Structure and Features
This series of motors can be used for steel rolling loads with frequency converters as driving power sources. It runs with constant torque below the base speed, and runs with constant power above the base speed.

The stator coil is wound with high-performance flat copper wire specially designed for variable frequency speed regulation motor, which fully considers the adverse effect of the inverter power supply system on the insulation of the motor winding, and strengthens the ground insulation and inter-turn insulation of the winding. The insulation performance and moisture resistance, impact resistance and heat dissipation performance of the winding are increased.



The rotor guide bar is made of high-quality red copper row intermediate frequency welding. The rotating shaft is made of high-quality 35CrMo alloy steel and has been heat-treated, with excellent mechanical properties and can withstand impact loads such as frequent overloading.

Motor overload capacity meets:
a. Continuous operation with 1.15 times the load within the rated voltage and rated speed range, or 150% short-term overload for 60S;
b. Occasionally use the overload multiple of 2.5 times (at the rated base speed), and the time does not exceed 15 seconds.
Standard form Standard Features:
Voltage: 690V or others
Protection class: IP55
Insulation class: F class or H class
Working system: S1 (continuous) or S3-40%
Cooling method: YPKS series is IC86W
Installation form: IMB3
Motor connection: Δ



Technical Parameters:

Description parameters
power range: 200~2240kW
Rate voltage: 10kV,6kv
center high: 450~630,710,800
Poles: 4, 6p ,8,10,12p

IP rate:

YP series: IP23
YPKK series: IP54, IP55

Cooling:



YP series: IC06
YPKK series: IC666

Frequency range:

constant torque: 5~50Hz
constant power: 50~67Hz



Each series of motors:

11000v Variable Speed Three Phase Asynchronous Motor IP55 0

Our aftersales service:

11000v Variable Speed Three Phase Asynchronous Motor IP55 1

Packing and Shipping:

11000v Variable Speed Three Phase Asynchronous Motor IP55 2



Certifications:

11000v Variable Speed Three Phase Asynchronous Motor IP55 3
