เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ
 |
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | Y800-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Ykk800 Ykk630 large scale Three Phase Asynchronous Motor | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling method: | IC01、IC411、IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| เน้น: | Large Synchronous Motor EC,YKK800 YKK630 Large Synchronous Motor,YKK800 YKK630 Squirrel Cage Motors |
||

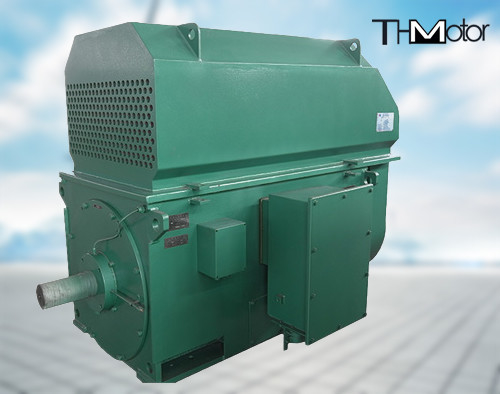

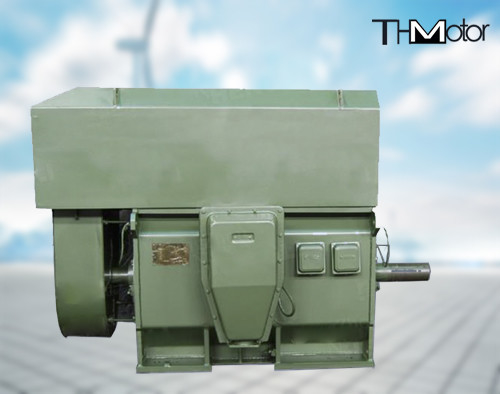

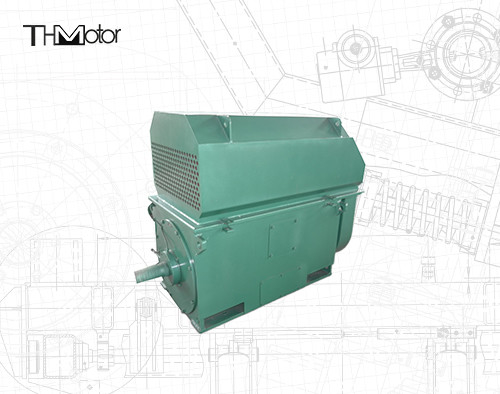

Ykk800 Ykk630 large scale Three Phase Asynchronous Motor
Product overview
This series of products are made of steel plates welded into a box-type structure, which is light in weight and has good rigidity; the top is equipped with a closed air-air cooler, which is easy to maintain; the stator adopts a press-fit structure, the stator winding is F-class insulation, VPI dipping paint, and the insulation performance is excellent and reliable. , Good mechanical strength, strong moisture resistance; the basic form is IP44 protection grade, and can be made into IP55 grade according to requirements.
Product Specifications
Model: YKK 355-630
Standard: IEC
Efficiency Index: Standard
Frame range: 355-630(3KV, 6KV); 400~630(10KV) steel frame
Power range: 160～1600kw;
Voltage: 3KV, 6KV,, 10KV
Frequency: 50Hz, 60Hz
Number of poles: 2 4 6 8 10 poles
Protection class: IP55
Cooling method: IC611
Bearings: SKF or C&U
Ambient temperature: -15℃ ~ 40℃
Installation method: B3 right auxiliary junction box is on the same side of the main junction box
Auxiliary elements: 2xPT100 per winding; 1xPT100 per bearing; heating tape
Surface color: RAL 5010
Main applications: General machinery and equipment such as fans, pumps, compressors, belt conveyors, etc.
Product specifications
| frame(center high) | 355/500/630/710/800/1000 | IP | IP54/IP44/IP55 |
| Rated Power | 100kw - 10000KW | Cooling Method | IC611 |
| Voltage | 380-11000v | Poles | 2,4,6,8,10,12 |
| Frequency | 50HZ/60HZ | Insulation class | F;H |
| Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
| P.F. | 0.84-0.85 | AT | -15-40℃ |
| Standards |
IEC, DNV, GB |
Each series of motors
Our aftersales service
Product packaging
Certifications
