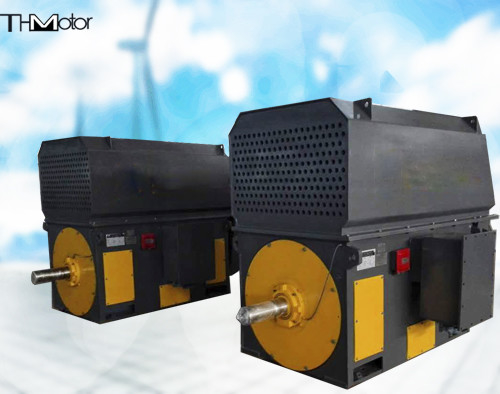

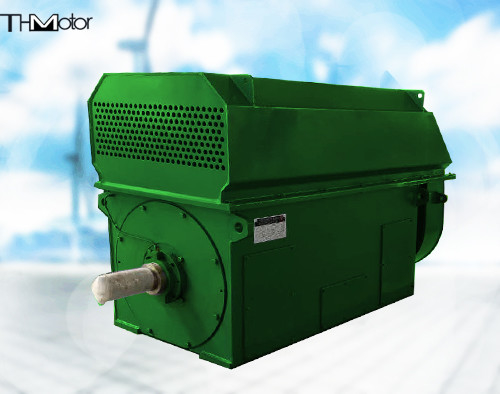

95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator

95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator

  • 95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator
  • 95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator
95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: TDMK400
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling method: IC01,IC37,IC81W
IP rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
เน้น:

95% Permanent Magnet Synchronous Motor

,

PM Synchronous Motor IC81W

,

95% PM Synchronous Motor

TPYM Permanent Magnet Synchronous Motor For Cement Vertical Mill Powder Separator



Product overview



TPYM series low-speed, high-torque powder separator special permanent magnet direct drive motor is mainly designed for the cement industry vertical mill, coal mill powder separator design permanent magnet direct drive motor, the motor speed range is: 100~200r/min, the motor adopts hollow shaft Structure, the motor is directly installed on the main shaft of the powder separator, the motor is equivalent to adding a counterweight to the main shaft of the powder separator, which reduces the vibration of the powder separator. Motors can be customized according to customer needs.

Product Features
Installation method: V1/V2;
Cooling method: air cooling or natural cooling;
Connection method: The motor is directly connected to the main shaft of the powder selection fan, and the reducer is removed;
Efficiency: 95%, power factor: 0.97;
Temperature control protection: 2-point bearing temperature measurement, 6-point winding temperature measurement, (PT100);
The motor shaft adopts special materials and process requirements, which are consistent with the size of the low-speed shaft of the imported reducer.

Product advantages
The renovation is convenient, and the on-site construction can be completed within 2-3 days;
The original system control cable and control switch do not need to be replaced;
The original pair of wheels can still be used, reducing the owner's renovation cost and improving convenience;
Improve equipment reliability, eliminate oil leakage and other downtime problems caused by reducer failures; eliminate the problem of system efficiency decline caused by the loss of transmission efficiency of the reducer itself;
The monitoring of motor operating parameters is more timely, and the equipment operation is more reliable; the monitoring methods are increased, and the inspection workload is reduced;
The one-time investment is highly economical and has obvious returns;



Product specifications



POWER RANGE: 400-15000kw VOLTAGE: 3kv-11kv
SPEED RANGE: 100, 125, 150, 167, 187.5, 200, 250, 300r/min POLES: 60, 48, 40, 36, 32, 30, 24, 20
FREQUENCY: 50hz,60hz COOLING METHOD: IC01,IC37,IC81W
IP RATE: IP00, IP20, IP21, IP23, IP44, IP54, IP55 STANDARD: IEC,GB



Each series of motors

95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator 0



Our aftersales service

95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator 1



Product packaging

95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator 2



Certifications



95% PM Synchronous Motor IC81W For Cement Vertical Mill Powder Separator 3
