เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ

|
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | YBKS560 high voltage Flameproof Electric Motor asynchronous motor | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP55 |
| เน้น: | 1500rpm asynchronous motor,3000V 6000V asynchronous motor,3000V 6000V Flameproof Electric Motor |
||

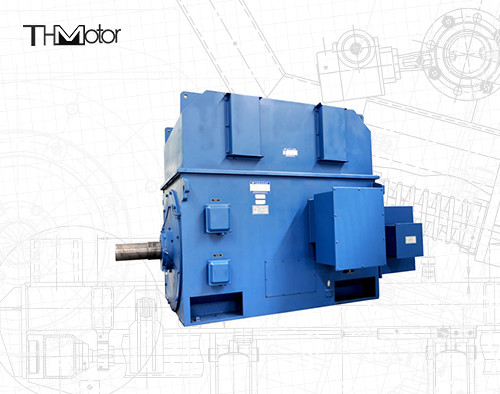

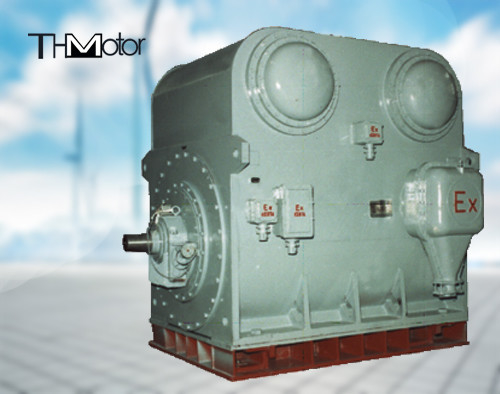

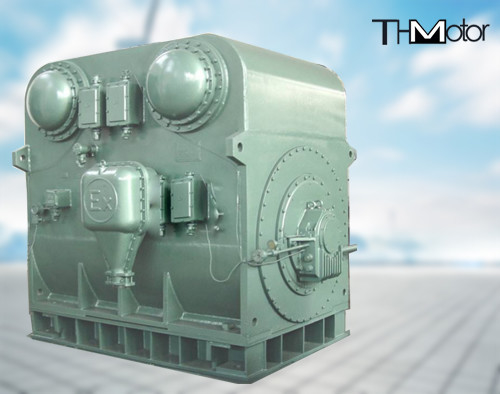

YBKS560 high voltage Flameproof Electric Motor asynchronous motor
Product overview
YBKS series high voltage flameproof three-phase asynchronous motor (H560～H710)
Power range: 185kW ~ 5600kW (3000V, 6000V)
Number of poles: 2 to 12, special requirements can be implemented according to the agreement.
Flameproof class: ExdI Mb, ExdIIAT4 Gb, ExdIIBT4 Gb
Rated voltage: 3000V, 6000V, 10000V
Technical features: compact structure, small size, light weight, low noise, high power density, and efficiency exceeding the level 2 energy efficiency requirements in GB 30254.
Application areas: used to drive fans, compressors, water pumps and other general mechanical equipment. Widely used in petroleum, chemical, steel, coal and other industries.
Product specifications
| PRODUCT NAME: | YBKS560 High Voltage Flameproof Electric Motor Asynchronous Motor | POWER RANGE: | 1000-12000kw |
|---|---|---|---|
| VOLTAGE: | 3kv-11kv | SPEED RANGE: | 1000rpm-1500rpm |
| POLES: | 4,6 | FREQUENCY: | 50hz,60hz |
| COOLING METHOD: | IC37,IC81W | IP RATE: | IP44,IP54,IP55 |
Each series of motors
Our aftersales service
Product packaging
Certifications
