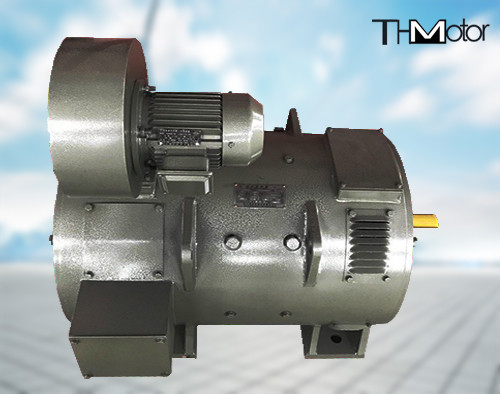

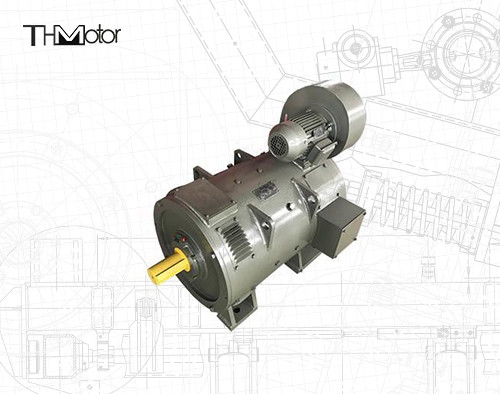

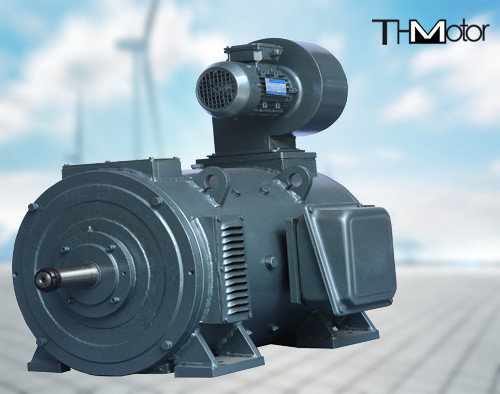

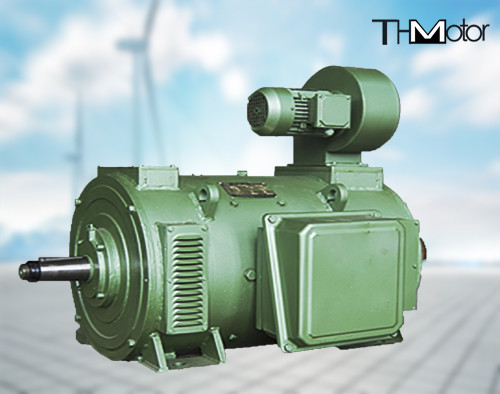

Rolling Mill Auxiliary Drive High Voltage DC Motor 900RPM IP23 IP44

Rolling Mill Auxiliary Drive High Voltage DC Motor 900RPM IP23 IP44

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: T 7000
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: ZZJ800 DC Motor For Rolling Mill Auxiliary Drive Motor For Steel Industry.​ Power Range: 1000-12000kw
Voltage: 3kv-11kv Speed range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling method: IC37,IC81W IP rate: IP44,IP54,IP55
เน้น:

Rolling Mill Auxiliary Drive Motor 900RPM

,

Rolling Mill High Voltage DC Motor 900RPM

,

Auxiliary Drive Motor IP23 IP44

ZZJ800 DC Motor For Rolling Mill Auxiliary Drive Motor For Steel Industry.​



Product overview



ZZJ800 series rolling mill auxiliary drive motor.
Rated power: 3.75kw - 186KW
Rated voltage: Normal 400V, 220V
Speed: 360RPM/475RPM/675RPM/900RPM/
Protection class: IP23/IP44
Cooling method: IC01/IC06/IC17/IC37
Insulation class: F

one. Features and uses:
ZZJ-800 series rolling mill auxiliary drive motor is an important power equipment in the iron and steel industry. Under the harsh working environment, it can withstand frequent starting, frequent reversible braking, and repeated large overload torque. It is mainly used for work rolls. Road, pressing device, loop tension roller, shearing machine, tong hoist and other equipment,
This series of motors has a circular structure with good heat dissipation. It is used for rectifier power supply, and can withstand the working conditions of pulsating current and rapid current changes (load changes), and has good commutation.
This series of motors maintains the outline and installation dimensions of the 600 series, and the power level is one level higher than that of the 600 series, which is equivalent to the international advanced level.
The insulation grade of the motor is F, and the reliable insulation structure and impregnation process are adopted to ensure stable insulation performance and good heat dissipation.
two. Motor performance
The data in the technical data sheet should work according to the following conditions of use
a. The altitude does not exceed 1000 meters
b. The ambient air temperature is between minus 30 degrees and 40 degrees
c. The working environment should not contain acid, alkali or other gases that are corrosive to insulation
d. The motor working system includes external ventilation continuous working system (S1), fully enclosed short-time working system S2, and fully enclosed intermittent periodic working system S3 (load duration FC=30%)
e. The motor armature circuit and excitation circuit can be powered by static rectifier power supply, and can also be powered by DC generator.
f. The excitation ampere-turn ratio of the ventilated continuous duty (S1) or fully enclosed short duty (S2) 1h time limit is about 50% other (parallel) ampere-turn and 50% series excitation ampere-turn.



Each series of motors

Rolling Mill Auxiliary Drive High Voltage DC Motor 900RPM IP23 IP44 0



Our aftersales service

Rolling Mill Auxiliary Drive High Voltage DC Motor 900RPM IP23 IP44 1



Product packaging

Rolling Mill Auxiliary Drive High Voltage DC Motor 900RPM IP23 IP44 2



Certifications

Rolling Mill Auxiliary Drive High Voltage DC Motor 900RPM IP23 IP44 3
