YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor

YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor

  • YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor
  • YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor
  • YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor
YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: QFRW60-2
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: YRKK Series HV Wound Rotor Motor (Slip Ring Motor) Power Range: 200-6000kw
Voltage: 3kv-10kv Speed range: 500rpm,1500rpm,3000rpm
Frequency: 50hz,60hz Cooling method: IC611
IP rate: IP44/IP54 Standard: IEC,GB
Insulation Class: F
เน้น:

10MW PM Direct Drive Generator

,

10MW squirrel cage induction generator wind turbine

,

squirrel cage generator IP55

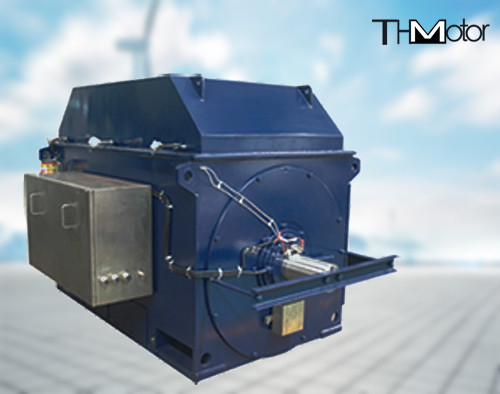

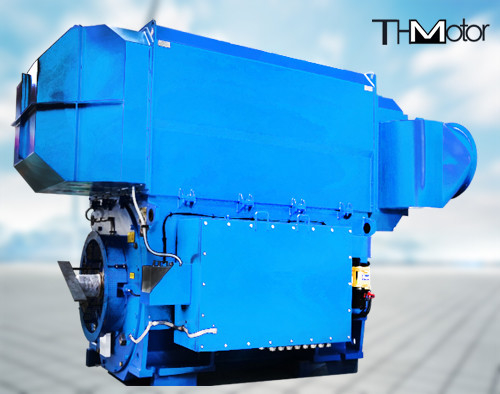

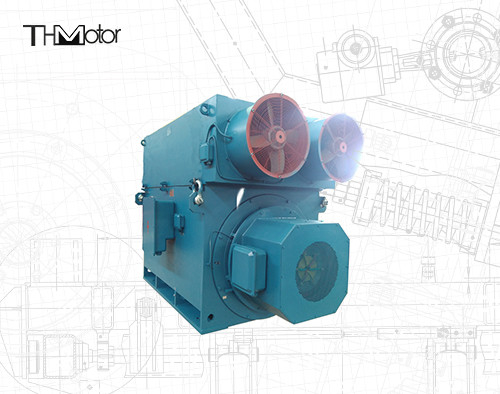

YRKK Series HV Wound Rotor Motor (Slip Ring Motor)



Product overview



YRKK-series (3kv, 6kv, 10kV) motor, is of wound rotor three phase asynchronous motor. Which complies with JB/T10314.2-2002. The protection degree of the motor is of IP44/IP54 and the cooling method is of IC611.

The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

This motor can generate larger starting torque at the state of relatively lower starting current. It used where the capacity of the feeder line is insufficient to start a squirrel cage motor or where the longer starting time and frequent starting are needed or where adjustment of speed is needed within a limited range such as windlass, press machines, drawing machines.



Product specifications



Product name YRKK Series HV Wound Rotor Motor (Slip Ring Motor) Speed 500rpm,150rpm,3000rpm
power 200-6000KW Insulation Class F
voltage 3kv-10kv Cooling method IC611
IP rate IP44,IP54



Each series of motors

YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor 0



Our aftersales service

YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor 1



Product packaging

YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor 2



Certifications

YRKK 1000KW ac electric motor three phase electric motor high-voltage wound rotor motor 3
