เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ

|
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | Y800-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Features: | Rustproof, erosion proof | Product name: | YP630-6 1400kw Induction Motor Variable Frequency High-Voltage Asynchronous Motors |
|---|---|---|---|
| Power Range: | 400-6000kw | Voltage: | 6000v-11000v |
| Speed range: | 100rpm-3600rpm | Frequency: | 50hz,60hz |
| Cooling method: | IC01、IC411、IC611 | IP rate: | IP23, IP54,IP55 |
| Poles: | 2,4,6,8,12,16 | ||
| เน้น: | 1400kw high voltage induction motors,Electric Induction Motors 100rpm,high voltage induction motor |
||

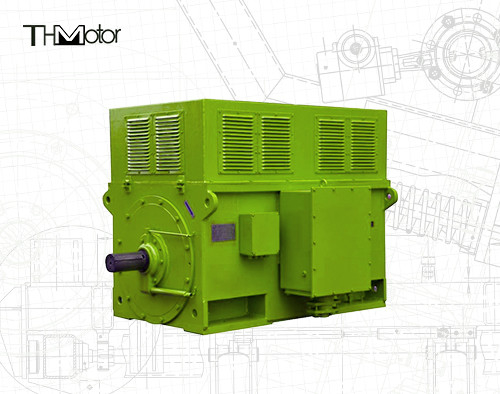

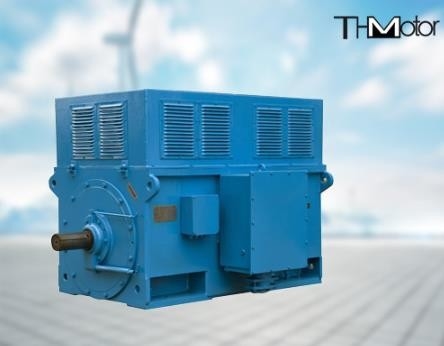

1400kw High Voltage Electric Induction Motors 100rpm-3600rpm
Product overview
YP series motor is a new type of variable frequency speed regulating motor independently developed by our company according to the needs of domestic and foreign markets. Its design and manufacturing process are in line with relevant national and industry standards. The electrical performance and installation dimensions also conform to the national standard GB755 and the IEC standard of the International Electrotechnical Commission. This series of motors can be continuously adjusted in speed within the range of 5-67Hz, that is, constant torque operation within 5-50Hz, and constant power operation within 50-67Hz.
YP series is the basic series, which generally has the advantages of high efficiency and energy saving, low noise, small vibration, wide speed regulation range, high precision and reliable quality, convenient installation, use and maintenance.
YP high-voltage variable frequency speed regulation three-phase asynchronous motors can drive various general machinery such as compressors, fans, water pumps, cutting machine tools, transportation machinery and other machinery, and are widely used in power plants, water plants, petrochemicals, mining and other industrial and mining enterprises. As the prime mover.
Product specifications
| frame(center high) | 355/500/630/710/800/1000 | IP | IP54/IP44/IP55 |
| Rated Power | 100kw - 10000KW | Cooling Method | IC611 |
| Voltage | 380-11000v | Poles | 2,4,6,8,10,12 |
| Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
| P.F. | 0.84-0.85 | AT | -15-40℃ |
| Material | cast iron |
| IM | horizontal |
| Standards |
IEC, DNV, GB |
Each series of motors
Our aftersales service
Product packaging
Certifications
