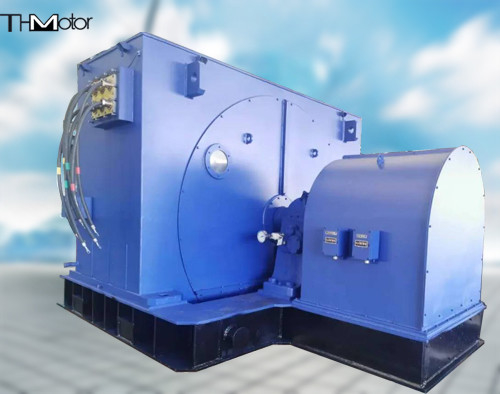

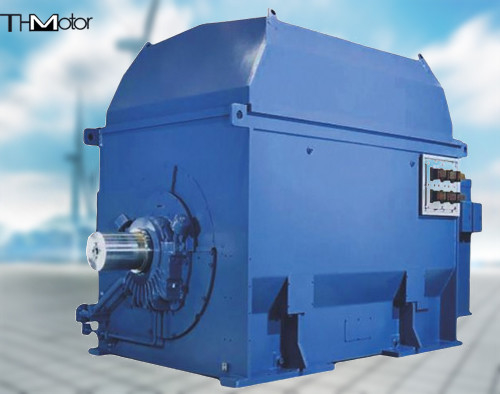

Driving Compressors AC Synchronous Motor Flame Proof 10 KV Electric Motor

Driving Compressors AC Synchronous Motor Flame Proof 10 KV Electric Motor

  • Driving Compressors AC Synchronous Motor Flame Proof 10 KV Electric Motor
  • Driving Compressors AC Synchronous Motor Flame Proof 10 KV Electric Motor
Driving Compressors AC Synchronous Motor Flame Proof 10 KV Electric Motor
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: T 7000
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Power Range: 1000-12000kw Voltage: 3kv-11kv
Speed range: 1000rpm-1500rpm Poles: 4,6
Frequency: 50hz,60hz Cooling method: IC37,IC81W
IP rate: IP44,IP54,IP55
เน้น:

flame proof AC Synchronous Motor

,

Driving Compressors AC Synchronous Motor

,

flame proof 10 kv electric motor

TK4000KW AC Synchronous Motor For Driving Compressors





Synchronous motor series (JB/DQ3449)
TK series synchronous motors are suitable for driving reciprocating compressors.
both With shaft and seat bearing (IM7300) and without shaft and seat bearing(IM5710) two structures. The cooling method is generally open type (IC01) and other types:
Such as with air-water cooler, or duct ventilation. The enclosure protection grade is generally IP00.
It can also be made into other grades such as IP23, and the insulation grade is B or F.
Excitation mode is static thyristor excitation
Power range: 250-10000kW
Voltage: 380V, 3000V, 6000V, 10000V
Speed: 150-1000r/min
Quality/safety certification: ISO9001/CE

frame(center high):630~750mm

power:0.45MW~50MW

voltage:3KV~15KV

frequency:50,60HZ

poles:2~40P

cooling method:IC01,IC611,IC81W,IEC,GB

explosive-proof:flame proof
