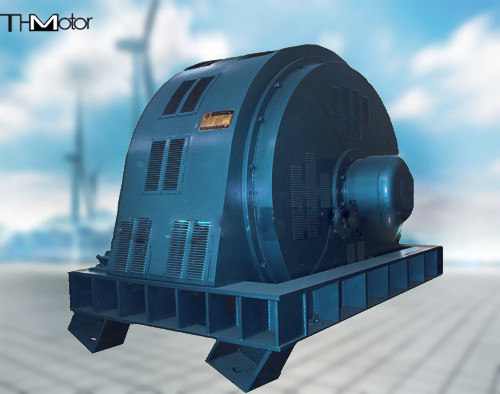

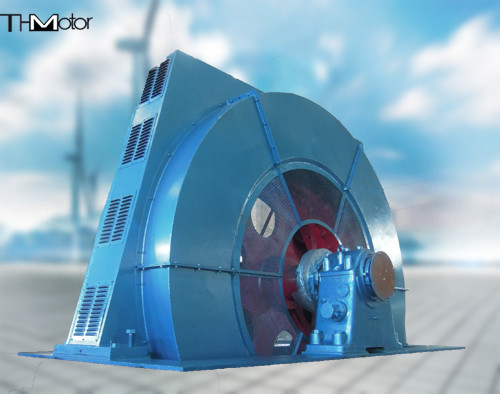

TXZ Big Starting Torque Large Synchronous Motor 500r/Min

TXZ Big Starting Torque Large Synchronous Motor 500r/Min

  • TXZ Big Starting Torque Large Synchronous Motor 500r/Min
  • TXZ Big Starting Torque Large Synchronous Motor 500r/Min
TXZ Big Starting Torque Large Synchronous Motor 500r/Min
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: TDMK400
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling method: IC01,IC37,IC81W
IP rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
เน้น:

TXZ Large Synchronous Motor

,

TXZ Big Starting Torque Motor

,

Large Synchronous Motor 500r/min

TXZ Large Synchronous Motor Big Starting Torque





TXZ series synchronous motor, the main speed is 250r/min, this series of motors is installed at an angle of 30°, mainly used for drainage pumping stations, the protection grades are mainly IP20, IP21, IP23

Widely used in petroleum, chemical, coal and other industries to drag reciprocating compressors, working in the explosive gas environment of "2" zone. Under normal working conditions, the altitude does not exceed 1000m, the maximum ambient air temperature does not exceed +40°C, and the minimum ambient temperature is -5°C.
Technical data and structure
Technical data
Rated voltage: 6kV, 10kV;
- Rated frequency: 50Hz;
- Quota: S1;
Synchronous speed: 250 r/min, 300 r/min, 333 r/min, 375 r/min, 428 r/min, 500 r/min;
- Thermal classification: 155 (F) level;
Shaft center height: 630mm;
Explosion-proof mark: ExeⅡCT1 Gc, ExeⅡCT2 Gc, ExeⅡCT3 Gc;
- efficiency: agreement;
- Power factor: 0.9 (leading);
The guaranteed value of the ratio of out-of-step torque to rated torque at rated voltage is 1.6;
The guaranteed value of the ratio of the locked-rotor torque to the rated torque under the rated voltage is 0.6;
- The guaranteed value of the ratio of nominal pull-in torque to rated torque at rated voltage is 0.6;
- The guaranteed value of the ratio of the locked rotor current to the rated current at rated voltage is 6.5;
- t time is not less than 5s.
Performance indicators can also be negotiated according to user requirements.
