เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ
 |
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | TLFB900-50 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Power Range: | 400-15000kw | Voltage: | 3kv-11kv |
|---|---|---|---|
| Speed range: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | Poles: | 60, 48, 40, 36, 32, 30, 24, 20 |
| Frequency: | 50hz,60hz | Cooling method: | IC01,IC37,IC81W |
| IP rate: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | Standard: | IEC,GB |
| เน้น: | 15000kw Permanent Magnet Synchronous Motor,15000kw Variable Speed Motor,Variable Speed Motor 300r/min |
||

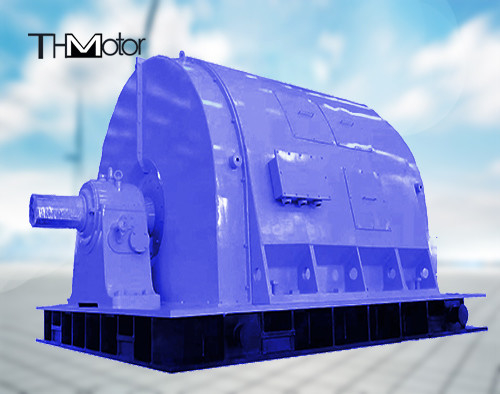

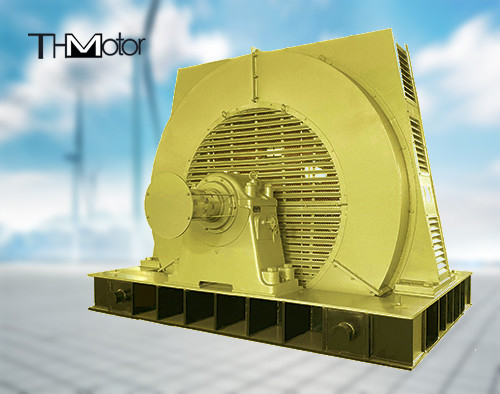

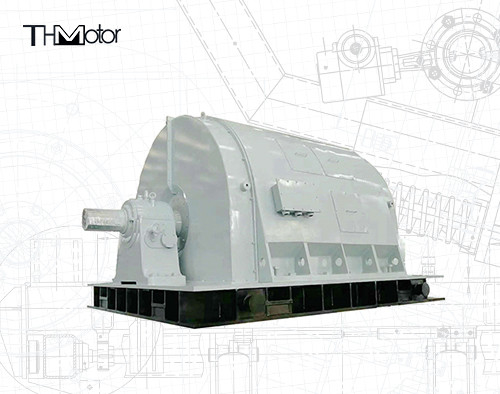

TPYM Permanent Magnet Synchronous Motor Powder Separator Direct Drive Variable Frequency
Product overview
TPYM series low-speed, high-torque powder separator special permanent magnet direct drive motor is mainly aimed at the permanent magnet direct drive motor designed for vertical mill and coal mill separator in the cement industry. The rotor is excited by permanent magnet material, which realizes low-speed and high-torque power transmission. The inverter is used to control the motor, and the reducer is removed, which basically realizes maintenance-free and improves the operating efficiency of the equipment system.
Product specifications
| POWER RANGE: | 400-15000kw | VOLTAGE: | 3kv-11kv |
|---|---|---|---|
| SPEED RANGE: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | POLES: | 60, 48, 40, 36, 32, 30, 24, 20 |
| FREQUENCY: | 50hz,60hz | COOLING METHOD: | IC01,IC37,IC81W |
| IP RATE: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | STANDARD: | IEC,GB |
Each series of motors
Our aftersales service
Product packaging
Certifications
