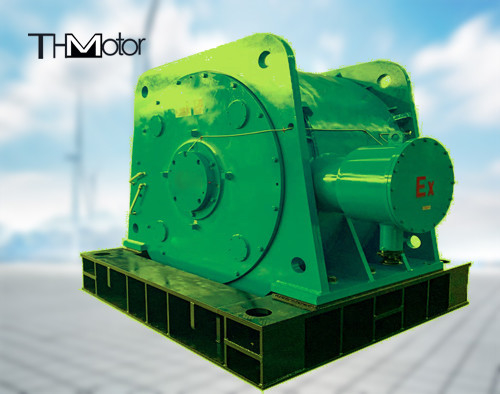

Ball Mill 8000kw AC Synchronous Motor

Ball Mill 8000kw AC Synchronous Motor

  • Ball Mill 8000kw AC Synchronous Motor
  • Ball Mill 8000kw AC Synchronous Motor
Ball Mill 8000kw AC Synchronous Motor
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: THMotor
ได้รับการรับรอง: CE
Model Number: T 7000
การชำระเงิน:
Minimum Order Quantity: 1set
ราคา: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
ติดต่อ
รายละเอียดสินค้า
Product name: TMW 8000kw Ac Synchronous Motor For Ball Mill Power Range: 1000-12000kw
Voltage: 3kv-11kv Speed range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling method: IC37,IC81W IP rate: IP44,IP54,IP55
เน้น:

8000kw AC Synchronous Motor

,

Ball Mill AC Synchronous Motor

,

TMW AC Synchronous Motor

TMW 8000kw Ac Synchronous Motor For Ball Mill



Product overview



Synchronous motor is a series of products developed by our company on the basis of asynchronous motor. It is required that the use environment be free of corrosive gases such as acid and alkali, and the rated power factor is 0.9 (leading).
In terms of design, this series of synchronous motors is optimized by computer, adopts new materials and new processes, and can meet various requirements of users. It has reliable performance, low temperature rise, low loss, high efficiency, low vibration, and large overrunning torque. , Simple structure, easy maintenance and so on.
This series of synchronous motors can be used to drive compressors, crushers, ball mills, rolling mills, blowers, water pumps and other general machinery.

Model Description

TM-----Synchronous motor for ball mill
TMW---Synchronous motor with brushless for ball mill



This series of motors is of horizontal structure, which has the characteristics of high efficiency, large out-of-step torque, low vibration, and convenient installation and maintenance. The stator is generally an integral structure, which is impregnated with F-class VPI solvent-free paint under vacuum pressure, so that the stator has good insulation performance and reliable mechanical performance, and can withstand the impact of electromagnetic force during startup. The rotor is of salient pole structure, the magnetic pole iron core is made of high-quality cold-rolled steel plates, and the full damping structure is adopted, so that the motor has good starting performance and damping ability.



Each series of motors

Ball Mill 8000kw AC Synchronous Motor 0



Our aftersales service

Ball Mill 8000kw AC Synchronous Motor 1



Product packaging

Ball Mill 8000kw AC Synchronous Motor 2



Certifications

Ball Mill 8000kw AC Synchronous Motor 3
