Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry

รายละเอียดสินค้า:

Place of Origin:	China
ชื่อแบรนด์:	THMotor
ได้รับการรับรอง:	CE
Model Number:	T 7000

การชำระเงิน:

Minimum Order Quantity:	1set
ราคา:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

ติดต่อ

รายละเอียดสินค้า

Product name:	Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry	Power Range:	1000-12000kw
Voltage:	3kv-11kv	Speed range:	1000rpm-1500rpm
Poles:	4,6	Frequency:	50hz,60hz
Cooling method:	IC37,IC81W	IP rate:	IP44,IP54,IP55
เน้น:	Taw 8000kw AC Synchronous Motor , Explosion Proof Motor 18 poles , Taw 8000kw Explosion Proof Motor

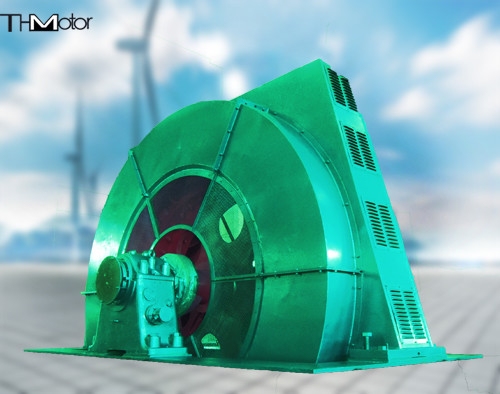

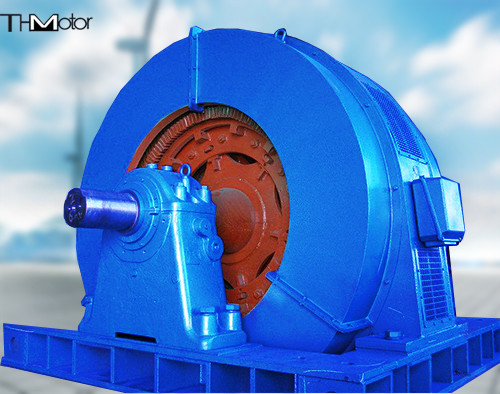

Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry

TAW series increased safety type brushless excitation synchronous motor
Power range: 250kW～10000kW
Number of poles: 12 to 30. If there are special needs, it can be implemented according to the design.
Explosion-proof mark: ExeIICT3 Gc
Rated voltage: 6000V, 10000V, etc.
Technical features: high efficiency and energy saving, beautiful appearance, low vibration, low noise, high protection level, high safety, convenient use and maintenance.
Application fields: drive large-scale mechanical equipment such as reciprocating compressors, widely used in petroleum, petrochemical, chemical, fertilizer, coal, natural gas and other industries, working in the explosive gas environment of "2" zone.

Technical Data(6kv)

Power	1800-12000kw	IP	IP44
Ist	4.55-6.05	Cooling Method	IC91W
Voltage	380-11000v	Poles	10,12,16,32
Frequency	50HZ/60HZ	Insulation class	F;H
Speed	150/500RPM	Efficiency	96.4-97.7%
P.F.	0.84-0.85	AT	-15-40℃

Technical Data(10kv)

Power	2000-36000kw	IP	IP44
Ist	4.69-6.65	Cooling Method	IC91W
Voltage	380-11000v	Poles	10,12,16,32
Frequency	50HZ/60HZ	Insulation class	F;H
Speed	150/500RPM	Efficiency	96.4-97.7%
P.F.	0.84-0.85	AT	-15-40℃
