เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ
 |
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | TAW 5000kw 18poles High Efficiency Ac Synchronous Motor Explosion-Proof Motor | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP55 |
| เน้น: | 1500rpm high efficiency electric motors,1500rpm flame proof motor,flame proof motor 18 poles |
||

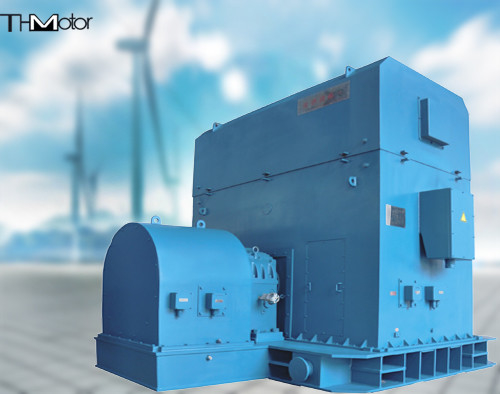

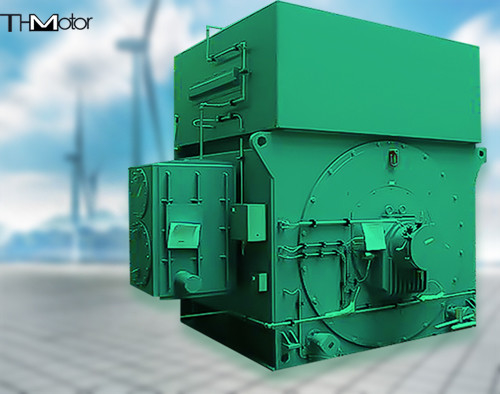

TAW 5000kw 18poles High Efficiency Ac Synchronous Motor Explosion-Proof Motor
TAW series increased safety type brushless excitation synchronous motor
Power range: 250kW～10000kW
Number of poles: 12 to 30. If there are special needs, it can be implemented according to the design.
Explosion-proof mark: ExeIICT3 Gc
Rated voltage: 6000V, 10000V, etc.
Technical features: high efficiency and energy saving, beautiful appearance, low vibration, low noise, high protection level, high safety, convenient use and maintenance.
Application fields: drive large-scale mechanical equipment such as reciprocating compressors, widely used in petroleum, petrochemical, chemical, fertilizer, coal, natural gas and other industries, working in the explosive gas environment of "2" zone.
ผู้ติดต่อ: Chongqing sales team
โทร: +8613251285880
