เครื่องยนต์ของเรา ช่วยประหยัดพลังงาน และขับเคลื่อนความสําเร็จของคุณ
 |
| Place of Origin: | China |
| ชื่อแบรนด์: | THMotor |
| ได้รับการรับรอง: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| ราคา: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Power Range: | 1000-12000kw | Voltage: | 3kv-11kv |
|---|---|---|---|
| Speed range: | 1000rpm-1500rpm | Poles: | 4,6 |
| Frequency: | 50hz,60hz | Cooling method: | IC37,IC81W |
| IP rate: | IP44,IP54,IP55 | ||
| เน้น: | Blower Fan Synchronous Induction Motor,3kv Industry Synchronous Induction Motor,IC81W Synchronous Induction Motor |
||

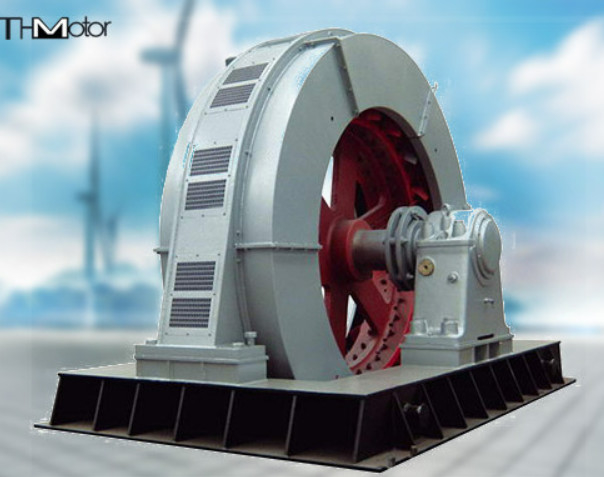

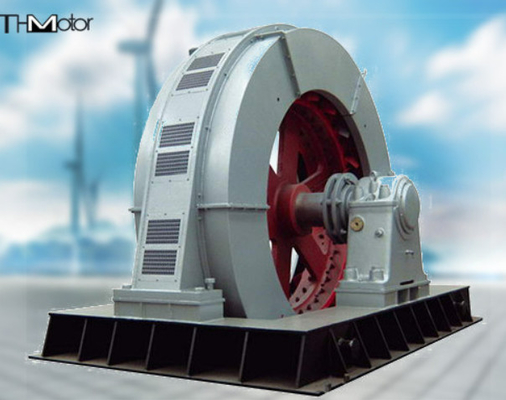

TK4000 Ac Synchronous Motor Industry Blower Fan Motor
Synchronous motor series (JB/DQ3449)
TK series synchronous motors are suitable for driving reciprocating compressors.
both With shaft and seat bearing (IM7300) and without shaft and seat bearing(IM5710) two structures. The cooling method is generally open type (IC01) and other types:
Such as with air-water cooler, or duct ventilation. The enclosure protection grade is generally IP00.
It can also be made into other grades such as IP23, and the insulation grade is B or F.
Excitation mode is static thyristor excitation
| Power range | 250-10000kW |
| Voltage | 380V, 3000V, 6000V, 10000V |
| Speed | 150-1000r/min |
| Quality/safety certification | ISO9001/CE |
Model Description
T-------Synchronous motor
TK-------Synchronous motor for air compressor
TL------Vertical Synchronous Motor
TKK-----synchronous motor with air-air cooler
TM-----Synchronous motor for ball mill
TKS------with air-water cooler synchronous motor
